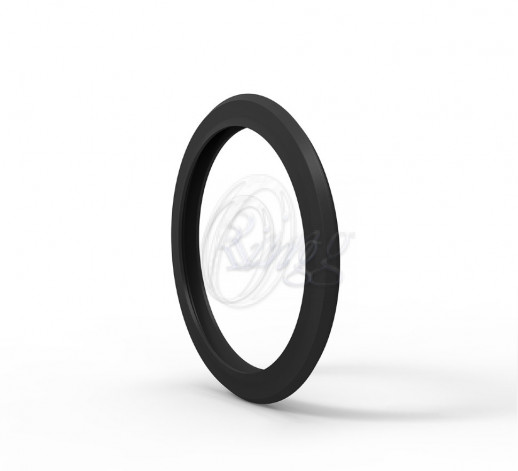

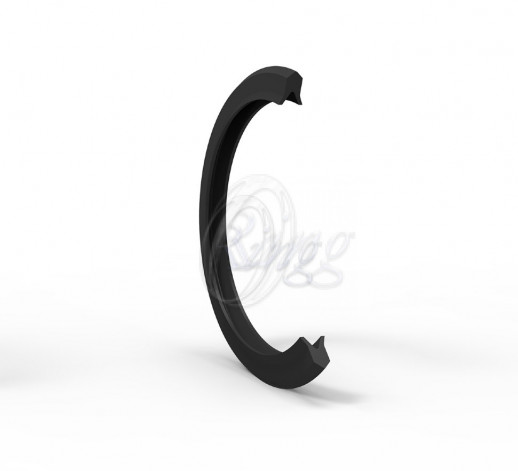

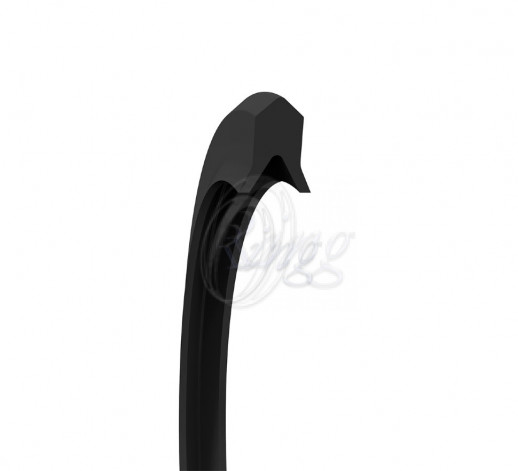

K65 is a double acting pneumatic piston seal designed to workin low axial housing heights.
PRODUCT ADVANTAGES
• Easy installation
• Low friction
• Superior sealing effect
APPLICATION
Short stroke pneumatic cylinders and valves.
| |||||||||||||||
| |||||||||||||||
Note: The above data are maximum values and cannot be usedat the same time.
| SURFACE ROUGHNESS | Rmax |
| Sliding Surface ?D | <=4 ?m |
| Groove Base ?d | <=10 µm |
| Groove Flanks B | <=15 µm |
INSTALLATION
K65 can be snapped by hand into the housing grooves provided. In case of using an assembly tool make sure that it is of soft material and have no sharp edges. Before installation the sealing element must be oiled with system oil. Special lubrication should be used on the sliding surface in case of having dried media.
NOTES
For special applications that require high temperatures , K65 can be produced in FKM material.
At pressure range <1 bar vent hole is recommended; however single-acting sealing function is guaranteed at this condition.
Тип профиля | K65 |
Материал | NBR |
Размер (мм) | 35X22,5X3 |
