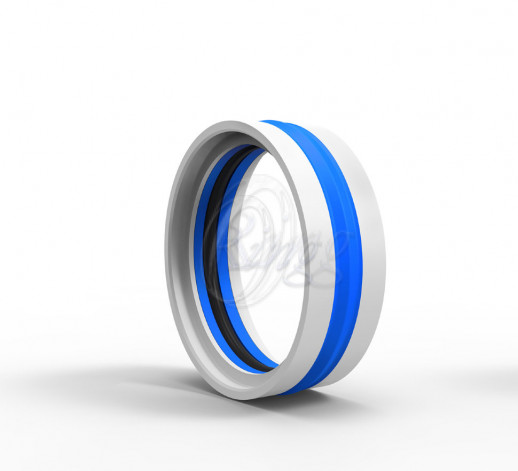

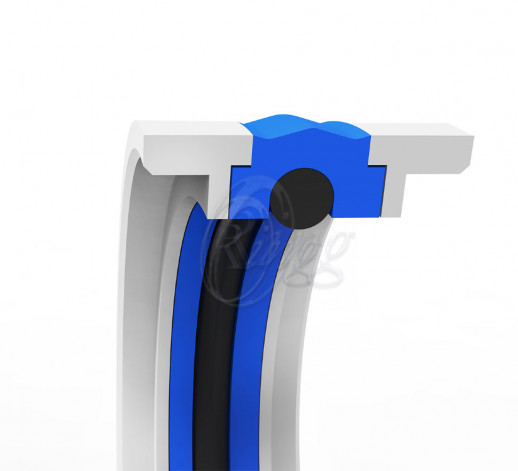

K46 is a four piece doble acting compact seal consisting of polyurethane sealing ring with NBR energizer O-ring and two special profile guide rings made of thermoplastic to absorb transverse forces.
| PRODUCT ADVANTAGES •Superior sealing performance •No requirement for an additional guide ring due to the compact design •Economic sealing and guiding solution •Simple groove design , one-piece piston possible •Reducing piston machining cost due to low cross-section thickness •Easy installation APPLICATION Agricultural machinery , industrial applications | ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| ||||||||||||||||||||||||
| SURFACE ROUGNESS | Ra | Rmax |
| Sliding Surface ?D | <=0.4 ?m | <=3.2?m |
| Groove Base ?d | <=1.6 ?m | <=6.3?m |
| Groove Flanks B | <=3.2?m | <=16 ?m |
Not: It is recommended to have 50% to 90% of the working surface material contact area value. | ||
INSTALLATION | ||
Размер (мм) | 100X87X14 |
Тип профиля | K46 |
